A simple, low-cost way to move air, smoke, fumes, and light materials. Air Amplifiers utilize the Coanda effect, a basic principle of fluidics, to create air motion in their surroundings. Air Amplifiers pull in large volumes of surrounding air to produce high volume, high velocity outlet flows. Quiet, efficient Air Amplifiers will create output flows up to 25 times their consumption rate.

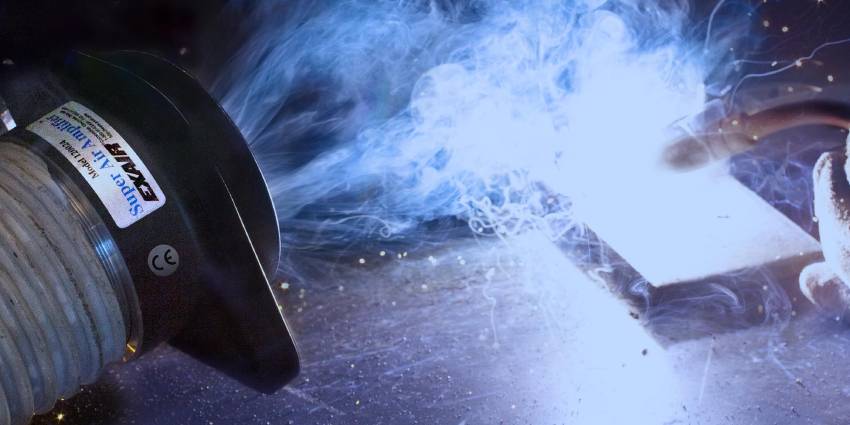

Super Air Amplifier

Air Amplifiers

EXAIR's Super Air Amplifiers are patented to reduce compressed air use and increase ambient air amplification. They move a large amount of air by creating a uniform, focused, high velocity blast of air that draws in surrounding air for an amplified output. Great for ventilation, circulation or cooling hot parts.

  • • Up to a 25:1 amplification ratio of surrounding air to compressed air
  • • Compact design with no moving parts includes a two bolt flange for mounting
  • • Temperature rated up to 275°F (135°C)

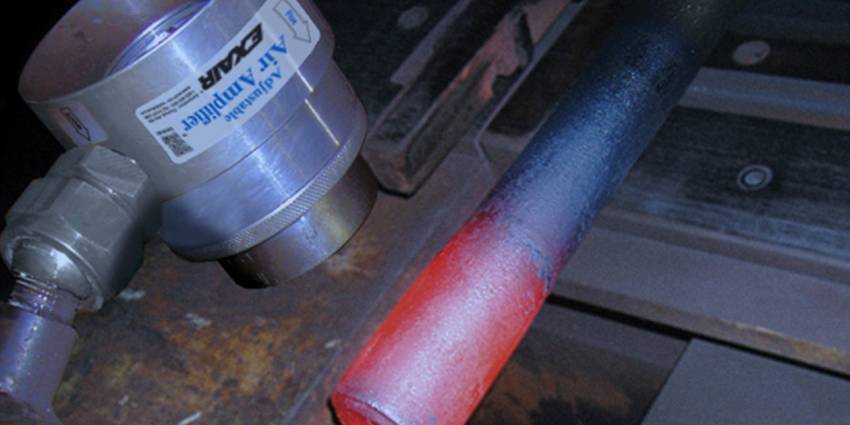

Adjustable Air Amplifier

Air Amplifiers

Air Amplifiers have the benefit of an infinitely adjustable air gap which increased or decreases flow and force. They have the same advantages as EXAIR's Super Air Amplifiers plus they are available in stainless steel for higher temperature and corrosive environments. Ideal for work areas with constantly changing conditions.

Force and fl ow for the Adjustable Air Amplifi er is changed by turning the exhaust end (with the knurled ring loose) to open or close the continuous air gap. When desired performance is obtained, the knurled ring can be tightened to lock the flow at that setting.

  • • Infinitely adjustable and easy to lock in setting
  • • Temperature rated up to 400°F (204°C)
  • • Meets OSHA noise and pressure requirements

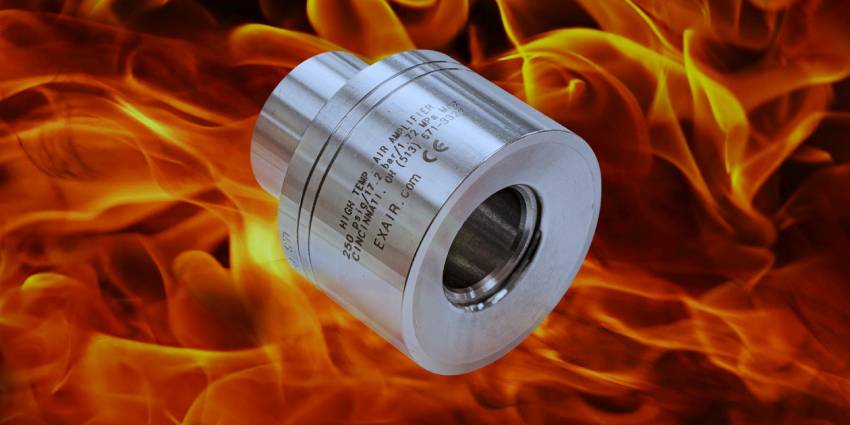

High Temperature Air Amplifier

Air Amplifiers

Air Amplifiers ideal for circulating and moving hot air to surfaces requiring uniform heating. Commonly used in ovens, furnaces, and large molds.

  • • Temperature rated up to 700°F (371°C)
  • • No moving parts and no electricity required
  • • Meets OSHA noise and pressure requirements

Air Amplifier Accessories

Air Amplifiers

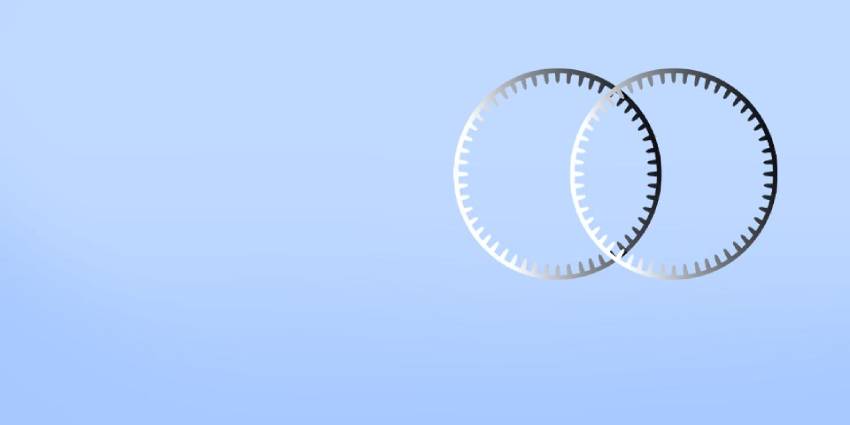

Shim sets are available for Super Air Amplifiers which will change the air gap.

  • • Adjust the air gap to create more force and flow
  • • Available for every size Super Air Amplifier

Patented design minimizes air consumption and maximizes amplification
