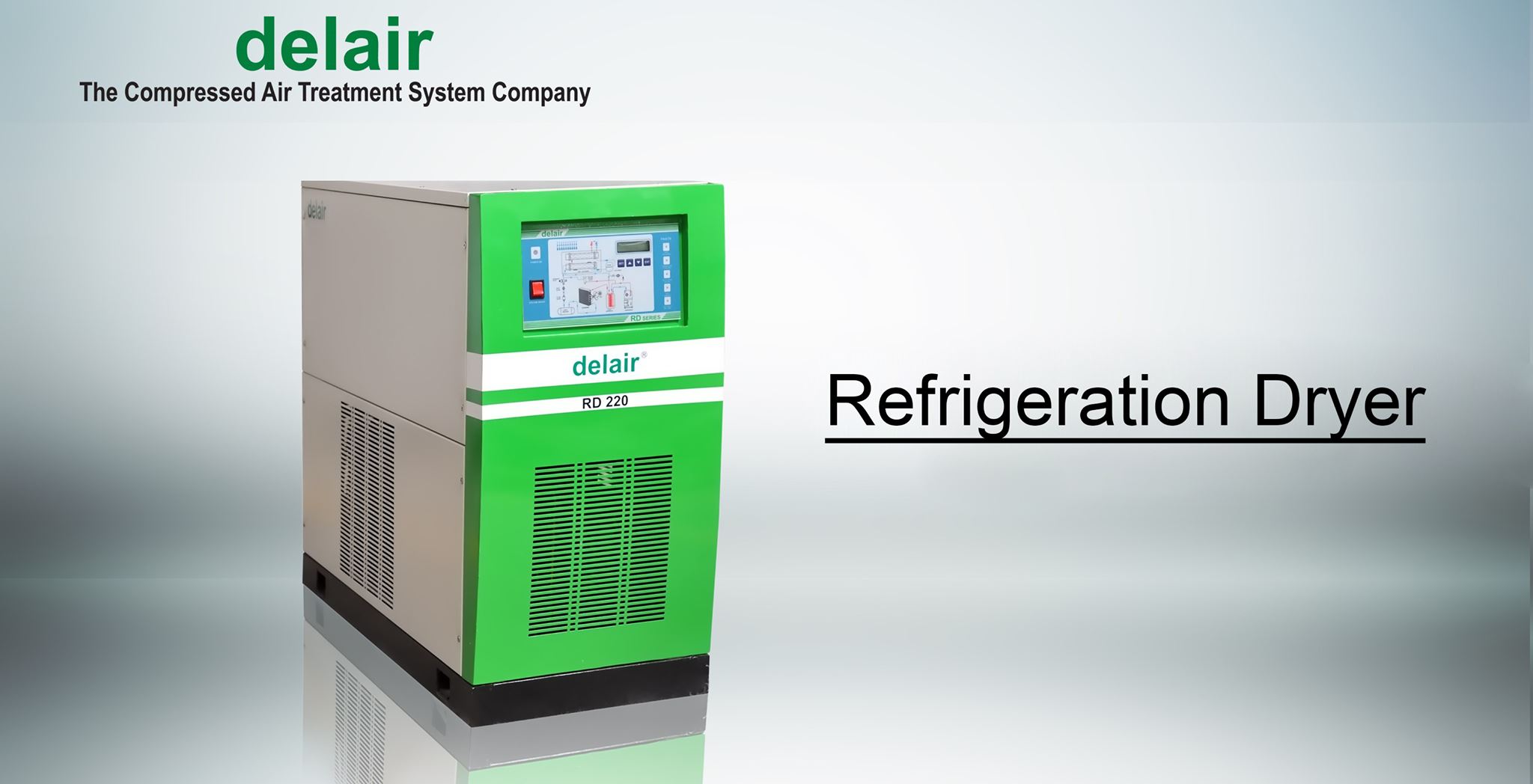

Delair Refrigeration Dryers operate at high pressure upto 40 bar on the method of cooling the air to near freezing point to remove the moisture and the cold dry air is reheated by incoming air to approximately 10°C below the incoming compressed air temperature at nominal conditions.
Key Features / Benefits
- • Available in 45 standard models
- • Provides best pressure dew point from +3°C to +4°C
- • Microprocessor based delsmart LCD card to read out dew point, operating status, faults indication
- • Proprietary Heat Exchanger
- • Filled with Eco-friendly refrigerant
- • Energy saving
- • Designed especially for tropical conditions
- • Unique Volume Liquid Accumulator
- • Unique Volume Liquid Accumulator
- • Compact design
- • According to ISO 7183 Compressed Refrigerant Air Dryer
Technical Specification
- • Pressure : 7.0 kg/cm (g)
- • Max. Working Pressure : 14kg/cm (g)
- • Air Inlet Temperature : 45°C
- • Ambient Temperature : 45°C
- • Water Pressure : 3-6 kg/cm (g)
- • Water Inlet Temperature : 32°C
