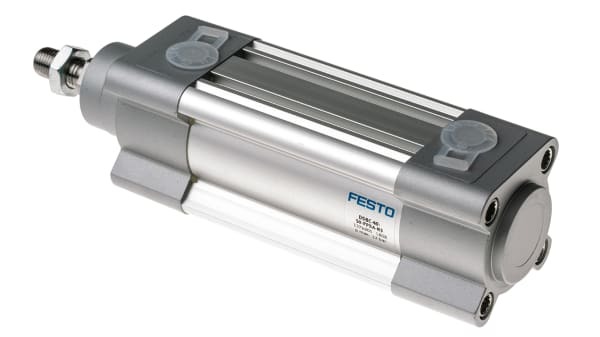

Cylinders with piston rod
- • Cylinder with piston rod: as a compact cylinder, short stroke cylinder, flat cylinder, round cylinder, miniature cylinder, cartridge cylinder or stainless steel cylinder
- • Specified types in accordance with the ATEX directive are suitable for explosive atmospheres or are made of corrosion resistant stainless steel and therefore particularly easy to clean.

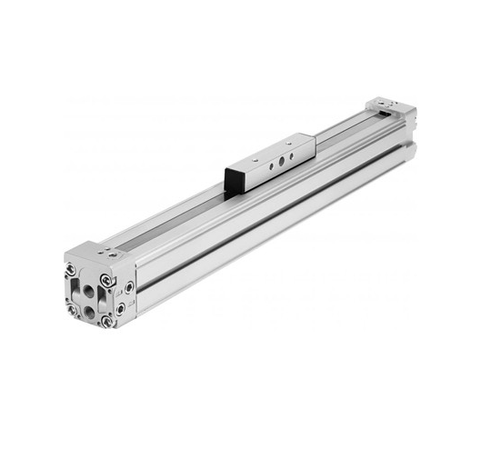

Rodless cylinders
- • Compact linear drives with or without guide: mechanically coupled cylinders with optimised mounting options for simple mounting and magnetically coupled cylinders for use as a pressure-tight and zero-leakage system.

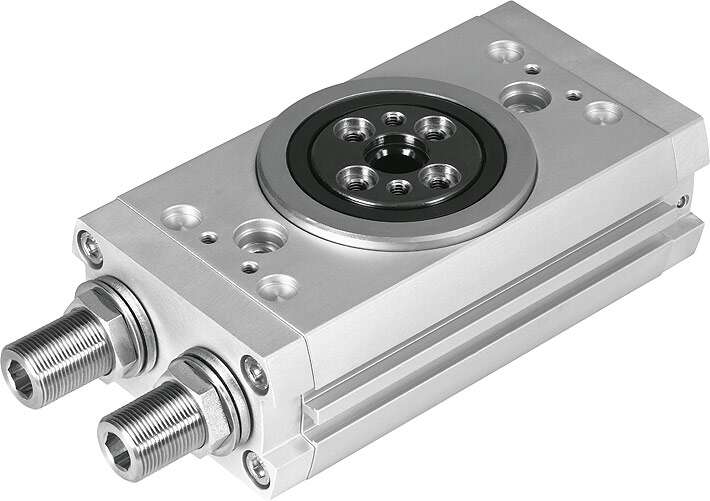

Semi rotary drives
- • Compact semi-rotary drives with small fitting space and adjustable swivel angles, also modular as twin piston rotary drive
- • Selected types are suitable for potentially explosive atmospheres, as per ATEX-guidelines.
Tandem cylinders, high-force cylinders and multi-position cylinders
- • More thrust than conventional cylinders by connecting in series 2, 3 or 4 cylinders with the same piston diameter and the same stroke.
- • By connecting 2 to 5 cylinders in series with the same piston diameter and different stroke lengths, up to 6 positions can be approached. .
Drives with guides
- • Drives with slide, rod guides or precision piston rod guide.
Stopper cylinder and feed separator
- • For stopping or separating when transporting workpiece carriers or pallets - smooth, quiet and safe stopping.
- • Fast and simple set-up on transfer systems without compressed air.
Clamping cylinders
- • Compact cylinders without piston rod with membrane and a much shorter stroke than bellows cylinders.
- • Clamping system with pneumatic drive
Diaphragm actuators and bellows cylinders
- • Rodless diaphragm drive: design consists of two metal plates with rolled in rubber bellows or hose.
Rotary indexing tables
- • Units for rotary indexing tasks at assembly and packaging machines and drilling stations, and for other applications with rotating movement of the workpiece or the tool.
Valve actuators for process automation
- • Quarter turn actuators
- • Linear drives with and without displacement encoder
- • Measuring units for linear drives.
Shock Absorbers
- • Stroke 1.7 ... 60 mm
- • Max. energy absorption per stroke 0.005 ... 384 J
- • Cushioning adjustable, self-adjusting, flexible cushioning rings
- • Components for cushioning kinetic energy.
Cylinder attachments and accessories
- • Mounting components, attachment parts, piston rod attachments and guides for drives
Electric Drives
Electric Axes
- • Size 32 ... 220
- • Stroke length 50 ... 8500 mm
- • Force 40 ... 6400 N
Electric cylinders and slides
- • Size 15 ... 100
- • Stroke length 50 ... 8500 mmStroke length 25 ... 1500 mm
- • Force 19 ... 17,000 N
Semi-rotary drives
- • Size 12, 16, 20, 25, 32
- • Max. driving torque 0.7 ... 8.5 Nm
- • Nominal torque 0.15 ... 5 Nm
- • Infinite rotation angle
Stopper cylinder and feed separator
- • For stopping or separating when transporting workpiece carriers or pallets - smooth, quiet and safe stopping.
- • Fast and simple set-up on transfer systems without compressed air.
Electric handling module
- • Rotary/lifting modules.
Accessories for electromechanical drives
- • Couplings, connecting shafts, coupling housing, motor flange.
Electric cylinders and slides
Electric cylinder unit EPCE
- • Drive with integrated electronics.
- • Complete solution for simple motion between mechanical end positions
- • Size 45, 60
- • Stroke length 5 ... 80 mm
- • Force 85 ... 150 N
- • Toothed belt drive with plain-bearing guide
Electric cylinder unit EPCS
- • Drive with integrated electronics
- • Complete solution for simple motion between mechanical end positions
- • Size 45, 60
- • Stroke length 5 ... 80 mm
- • Force 85 ... 150 N
- • Toothed belt drive with plain-bearing guide
Electric cylinder EPCC
- • Mechanical linear drive with piston rod
- • Size 25, 32, 45, 60
- • Stroke length 25 … 500 mm
- • Force 75 ... 1000 N
Electric cylinder ESBF
- • Feed forces of up to 17 kN
- • Size 32, 40, 50, 63, 80, 100
- • Stroke length 30 ... 1500 mm
- • Force: 600 ... 17000 N
- • Motor can be mounted using axial or parallel kit
- • Linear drive with ball screw in Clean Design
Electric cylinder EPCO
- • Mechanical system with permanently attached motor
- • Size: 16, 25, 40
- • Stroke length: 50 ... 400 mm
- • Force: 50 ... 650 N
- • Ball screw with non-rotating piston rod
Mini-slides EGSC
- • Size 25, 32, 45, 60
- • Stroke length 25 ... 200 mm
- • Integrated recirculating ball bearing guide
Mini-slides EGSC
- • Electric alternative for very simple movement and positioning tasks between two mechanical end positions.
- • Size 32, 45, 60
- • Stroke length 25 … 200 mm
- • Force 60 … 250 N
Mini slides EGSL
- • Size 35, 45, 55, 75
- • Stroke length 50 ... 300 mm
Electric slide EGSK
- • Size: 15, 20, 26, 33, 46
- • Stroke length: 25 ... 840 mm
- • Force: 19 ... 392 N
- • Recirculating ball bearing guide and ball screw
Grippers
Mechanical Grippers
- • Parallel gripper
- • Three-point grippers
- • Angle grippers
- • Swivelling grippers.
Gripper Accessories
- •Adapter kits and installation components for handling units with which handling systems can be set up.
Vacuum Technology
Vacuum Generators
- • Vacuum generators according to the venturi principle in various performance categories.
Vacuum gripping technology
- • Wide variety of vacuum suction cups and vacuum grippers:
- • various designs, materials and sizes of suction cups and a modular suction gripper system with a wide range of different suction cup holders, angle and height compensators and filters.
Accessories for vacuum
- • Mounting and connection elements
- • Offset elements
- • Vacuum displays
- • Vacuum filters
- • Vacuum efficiency valves
