Pneumatic Fittings System

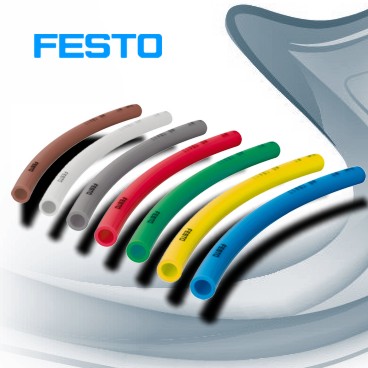

Tubing

Tubing
  • • Tubing for a wide range of working environments, including for the food industry, flame-retardant, PWIS-free or media-resistant designs.

Fittings

Universal valve terminals
  • • Line connector (fitting) and line connecting components with push-in and barbed fitting connection.
  • • Typical shapes of push-in fittings and connectors include straight, L, T, X and Y.
  • • Also includes special accessories such as blanking plugs.

Pipe

Universal valve terminals
  • • Polyamide, wrought aluminium alloy, polyethylene
  • • Outside diameter 6 ... 28 mm
  • • Operating pressure -0.95 ... 30 bar
  • • Ambient temperature -30 ... 75°C
  • • Operating medium
  • • Compressed air
  • • Vacuum
  • • Fluids

Push-in fittings for PQ tubes

Push-in fittings for PQ tubes
  • • Port G3/8, G1/2, G3/4, G1
  • • Diameter 12, 15, 18, 22, 28 mm.

Couplings

Universal valve terminals
  • • Self-closing connectors (always in combination: plug and socket)

Distributors

Universal valve terminals
  • • Connector with one connection and more than two outputs, except for push-in X-connectors.

Protective conduit systems

Universal valve terminals
  • • Protective conduits and accessories for protective conduit systems.

Accessories for pneumatic fittings system

Universal valve terminals
  • • Components for supply lines and line connectors with autonomous functions such as blanking plugs, double nipples, tubing cutters, ...
